Size Range:DN50-DN1200
Pressure: 150LB/300LB
Body Material:WCB
Seat Material:430+graphite
Disc Material:WCB
Stem Material:2Cr13
Features: Wafer type, WCB Body, WCB Disc, stainless steel Sealing ring + graphite, 2Cr13 stem, Worm Gear Operated.
Size Range:DN50-DN1200
Pressure: 150LB/300LB
Body Material:WCB
Seat Material:430+graphite
Disc Material:WCB
Stem Material:2Cr13
Features: Wafer type, WCB Body, WCB Disc, stainless steel Sealing ring + graphite, 2Cr13 stem, Worm Gear Operated.
Parameter Information：
1. Executive standard：
| Name | Design and manufacture | Face to face Length | Pressure Test | Top Flange | End Flange |
| Reference Standard | API609 | API609 | API598 | ISO 5211 | ASME B16.5 |
2. Material of Main Parts：
| Name | 1-Body | 2-Seat | 3-Disc | 4-Stem | 5-Worm Gear |
| Material | WCB | 430+graphite | WCB | 2Cr13 | Component |
3. Dimensions：

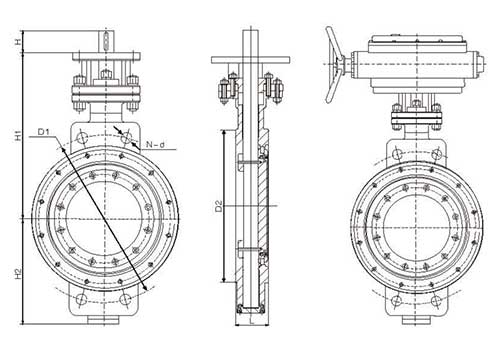

| 150LB | ||||||
| Size | L | D1 | D2 | N-d | H1 | H2 |
| 50 | 43 | 120.5 | 92 | 4-19 | 200 | 75 |
| 65 | 46 | 139.7 | 105 | 4-19 | 210 | 90 |
| 80 | 48 | 152.5 | 127 | 4-19 | 230 | 110 |
| 100 | 54 | 190.5 | 157 | 4-19 | 265 | 135 |
| 125 | 56 | 216 | 186 | 4-22 | 325 | 155 |
| 150 | 57 | 241.5 | 216 | 4-22 | 345 | 185 |
| 200 | 64 | 298.5 | 270 | 4-22 | 395 | 225 |
| 250 | 71 | 362 | 324 | 4-25 | 425 | 255 |
| 300 | 81 | 432 | 381 | 4-25 | 495 | 305 |
| 350 | 92 | 476 | 413 | 4-29 | 555 | 325 |
| 400 | 102 | 540 | 470 | 4-(1) | 590 | 360 |
| 450 | 114 | 578 | 533 | 4-(1-1/8) | 630 | 370 |
| 500 | 127 | 635 | 584 | 4-(1-1/8) | 700 | 410 |
| 600 | 154 | 749.5 | 692 | 4-(1-1/4) | 750 | 480 |
| 700 | 165 | 795.3 | 762 | 8-(3/4) | 830 | 550 |
| 800 | 190 | 900.1 | 864 | 8-(3/4) | 950 | 600 |
| 900 | 203 | 1009.6 | 972 | 8-(7/8) | 1000 | 660 |
| 1000 | 216 | 1120.8 | 1080 | 8-(1) | 1080 | 640 |
| 1200 | 254 | 1335.1 | 1289 | 8-(1-1/8) | 1250 | 830 |
